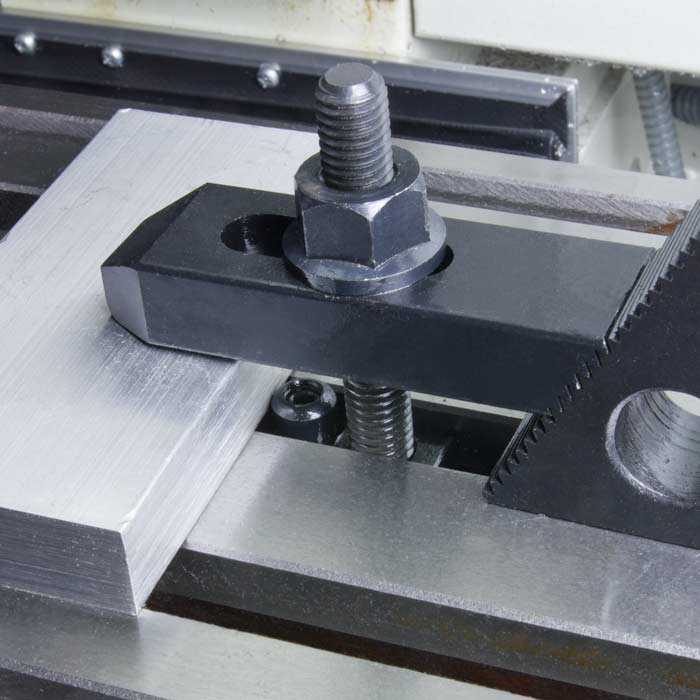

STEP SLOTTED STRAP CLAMP
| ITEM CODE | D SUITABLE FOR BOLT | L | W | Z | X | Y | h |
| PTSSC-10-60 | M-10 | 60 | 30 | 15 | 15 | 20 | 9 |
| PTSSC-10-80 | M-10 | 80 | 30 | 15 | 15 | 30 | 9 |
| PTSSC-10-120 | M-10 | 120 | 30 | 15 | 15 | 45 | 9 |
| PTSSC-12-65 | M-12 | 65 | 30 | 15 | 15 | 25 | 9 |
| PTSSC-12-100 | M-12 | 100 | 38 | 18 | 21 | 35 | 12 |
| PTSSC-12-125 | M-12 | 125 | 38 | 18 | 21 | 45 | 12 |
| PTSSC-16-75 | M-16 | 75 | 38 | 18 | 21 | 32 | 12 |
| PTSSC-16-125 | M-16 | 125 | 48 | 24 | 26 | 45 | 15 |
| PTSSC-16-160 | M-16 | 160 | 48 | 24 | 26 | 65 | 15 |
| PTSSC-20-160 | M-20 | 160 | 62 | 30 | 30 | 60 | 18 |
| PTSSC-24-200 | M-24 | 200 | 72 | 38 | 35 | 80 | 21 |
