Mold Clamp

Prime Technologies Provider Mould Clamp with height adjustment by heavy duty support hex bolt with round base and hex nut.
C45 Steel, Hardened and tempered to 25-32 HRC / 450 BHN and Black Thermal
Applications
Plastic Injection Moulding Machines, Rubber Moulding Machines

Note: PT-MC is supplied with the Clamp, Support Bolt and Lock Nut & Flange Nut.
T-Bolt/Stud, Clamping Flange Hex Nut and Thik Washer.

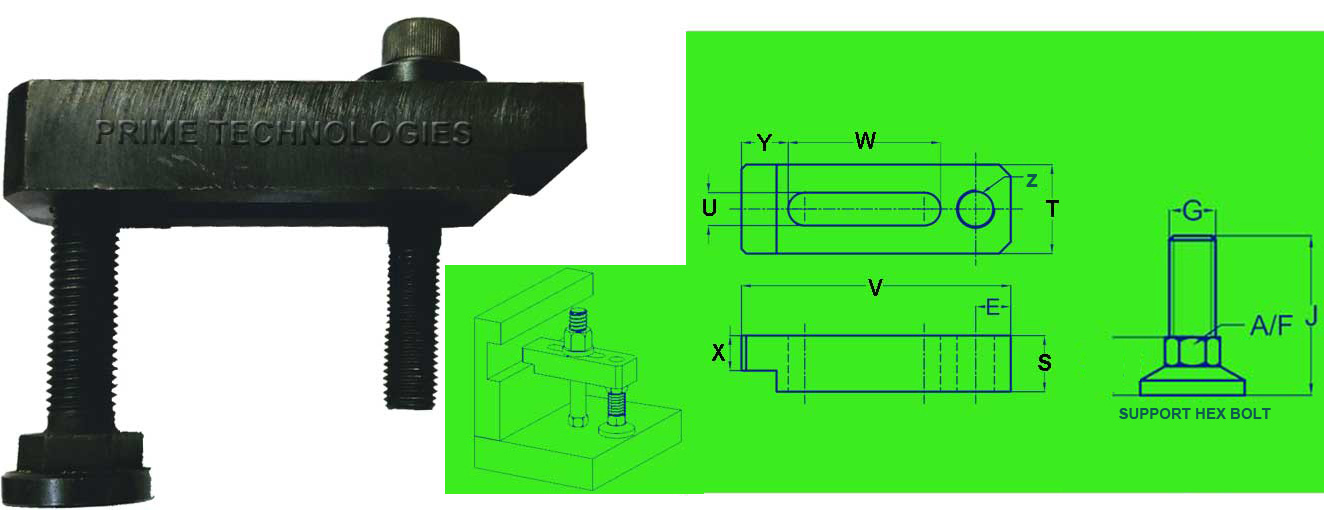

TYPE BOLT SIZE S T U x V W X Y Z E G x J Hex A/F x Base Enquiry
PT-MCH-12125L M12 24 38 14 x 125 65 15 20 M16x2 15 M16 x 100MM 19 x 35
PT-MCH-16130L M16 31 48 18 x 130 70 20 25 M20x2.5 18 M20 x 100MM 24 x 40
PT-MCH-16160L M16 31 48 18 x 160 90 20 25 M20x2.5 20 M20 x 90MM 24 x 40
PT-MCH-20140L M20 38 60 22 x 140 70 25 35 M24x3 18 M24 x 100MM 27 x 50
PT-MCH-20160L M20 45 60 22 x 160 90 30 35 M24x3 18 M24 x 100MM 27 x 50
PT-MCH-20200 M20 45 60 22 x 200 110 30 45 M24x3 22 M24 x 100MM 27 x 50
PT-MCH-24200 M24 48 78 26 x 200 105 35 45 M27x3 25 M27 x 100MM 30 x 55
PT-MCH-24250 M24 48 78 26 x 250 120 35 45 M30x3.5 35 M30 x 100MM 30 x 55
PT-MCH-30200 M30 50 100 32 x 200 110 40 55 M36x4 35 M36 x 100MM 36 x 60
PT-MCH-30250 M30 50 100 32 x 250 140 40 70 M36x4 35 M36 x 100MM 36 x 60
